Carrier Tapes

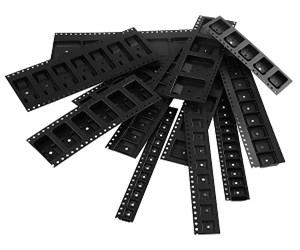

We manufacture embossed carrier tapes that meet EIA, EIAJ and the European standards using our own proprietary embossing machines. These machines are designed with the concept of 'SIMPLE' that allows minimal changeover time.

Besides the standard parts, we have technology to manufacture non-standard packages to house specialized parts like metal stamping parts and also to make deep-pocketed packages(up to 25mm). A thicker material may have to be used for these deep pockets.

Our basic material used for our carrier tape is Polystyrene (PS) but we do use other materials like Polycarbonate (PC), Styrenic Alloy (SA) and Amorphous-Polyethylene Terephthalate (APET). The materials used are specially formulated to provide consistent sealing strength and stable surface resistivity.

Precise dimensions are ensured in our process and well-defined pockets are designed for high-speed automated taping and surface mount equipment.

NEW PRODUCT

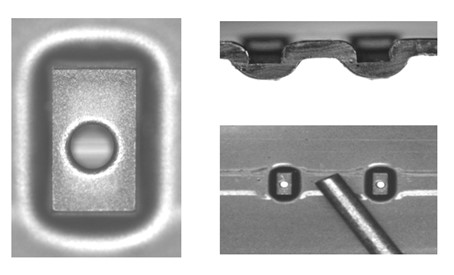

Micro Pockets

Pocket dimensions achievable : 0.31mm(Ao) x 0.57mm(Bo) x 0.15m(Ko)
Pocket Hole Diameter              : 0.15 - 0.17mm
Available Material                    : PC
